In the industrial landscape, power conversion and control are paramount. Industrial Battery chargers play a pivotal role in this domain, facilitating the conversion of alternating current (AC) to direct current (DC) for various applications. This article explores the applications, types, and advancements of industrial rectifiers, shedding light on their significance in modern industries.
Applications of Industrial Rectifiers
Power Supply and Distribution
- Industrial Machinery: Powering motors, drives, and control systems with reliable DC supplies.
- Uninterrupted Power Systems (UPS): Charging and maintaining large-scale battery banks for backup power solutions.
Renewable Energy Integration
- Grid-Tied Systems: Converting AC output from renewable sources like solar panels and wind turbines into DC for storage or direct use.
- Energy Storage: Charging and discharging battery systems in renewable energy storage applications.
Electrochemical Processes
- Electroplating: Utilizing DC power for depositing a metal coating on surfaces with precision and consistency.
- Electrolysis: Employing DC to facilitate chemical reactions, such as the production of chlorine and hydrogen
We recommend Hannibal Industrial Battery Charger- Rectifier. Click here
Types and Technologies
- SCR (Silicon-Controlled Rectifiers): Leveraging thyristors for controlled and efficient rectification, especially in high-power applications requiring precise voltage and current regulation.
Diode Rectifiers
- High-Power Diodes: Simple yet robust, suitable for applications where a constant DC output is sufficient without the need for advanced control.
- IGBT Modules: Combining the advantages of MOSFETs and bipolar transistors, IGBT-based rectifiers offer enhanced efficiency and switching capabilities for medium to high-power operations.
We recommend Hannibal Industrial Battery Charger- Rectifier. Click here
Thyristor-Based Battery Charger, Rectifiers
Alternating current, as its name suggests, means current flows in both directions during a single cycle. In its most basic form, a single phase rectifier circuit consists of one, two or four diodes, arranged in order that the current is forced to flow in one direction.
A thyristor is a semiconductor device that can be used to switch current on and off. When used in rectifier circuits, thyristors allow current to be controlled more accurately than diodes, which can only be ON or OFF.
A thyristor can be triggered to allow current to pass in a graduated manner, by firing (switching on the thyristor) at a precise time, therefore controlling the conduction angle. The level of control required for a given application will determine how thyristors are used in the circuit.
Half-controlled rectifiers use thyristors in place of diodes on either the positive or negative side of the circuit, whereas a fully-controlled rectifier uses thyristors entirely.
Multi-phase rectifier circuits
Multi-phase AC inputs are rectified using diodes on each phase. As with single-phase supplies, these rectifiers can be uncontrolled (diodes only), half-controlled or fully controlled using thyristors.

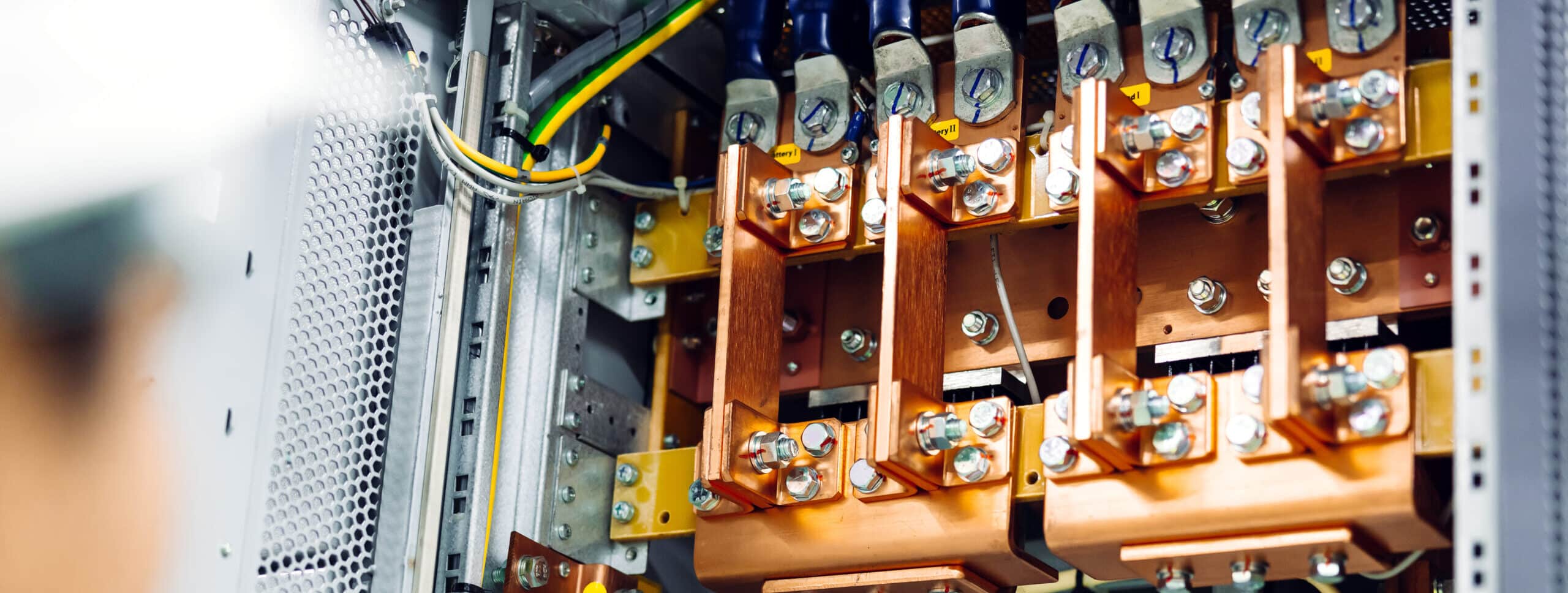

Thyristor Controlled Battery Charger, rectifiers in systems
The basic rectifier components convert AC to DC, but the output has to be supplied to the system in a suitably protected way. This includes blocking any unwanted noise or voltage spikes that may be generated from the AC line or during the rectification of the supply. The semiconductors used in these applications are typically very robust but it is normal to protect them using quick blow fuses, specifically designed for that purpose. In the event of a fault leading to overheating, thermostatic trips are incorporated into the assemblies, and to reduce voltage spikes, snubber circuits are connected across the thyristors.
We recommend Hannibal Industrial Battery Charger- Rectifier. Click here
IGBT-Based Battery Charger-Rectifiers
An IGBT rectifier, also known as an “Insulated Gate Bipolar Transistor rectifier,” is a kind of rectification circuit that uses IGBTs to change direct current (DC) from alternating current (AC).
IGBT rectifiers are widely used in many different applications, especially in power systems and industries where accurate control of DC voltage and current is crucial.
Rectification is the process of converting AC electricity to DC, and it is the basis for how the IGBT rectifier works. An IGBT rectifier’s main parts include diodes, transformers, control circuits, and IGBTs. This is a detailed explanation of how an IGBT rectifier operates:
AC to DC Conversion: The mains provide AC electricity to the IGBT rectifier first. Usually, the AC voltage input is sinusoidal.
Stage of Rectification: To create a pulsing DC voltage, the AC voltage is first rectified using diodes. Unidirectional current is produced by diodes, which only permit one direction of current flow.
Stage of Filtering: Next, the pulsating DC voltage is sent through a filter, which is often made up of inductors and capacitors. By decreasing ripple and smoothing the voltage waveform, this stage produces a DC voltage that is comparatively constant.
IGBT Control: The IGBTs are then supplied with the filtered DC voltage. The output voltage and current are managed by the IGBTs. The rectifier precisely adjusts the output voltage and current in accordance with the requirements of the load by adjusting the duty cycle and switching frequency of the IGBTs.
Feedback Control: Constantly monitoring the output, feedback mechanisms — such as voltage and current sensors — provide data to the control circuitry. Based on the feedback, the control system modifies the IGBT switching to provide a steady and precise DC output.
Output: The ultimate result is a DC voltage that is well-regulated and has little ripple or harmonic distortion, making it appropriate for a variety of uses.
We recommend Hannibal Industrial Battery Charger- Rectifier. Click here
Advancements and Innovations
Digitalization and Control Systems
- Advanced Control Algorithms: Implementing sophisticated control algorithms for real-time monitoring, adaptive control, and system optimization.
- Remote Monitoring and Diagnostics: Integrating IoT (Internet of Things) capabilities for remote monitoring, predictive maintenance, and data-driven insights.
Efficiency and Performance
- Advanced Semiconductor Materials: Utilizing advanced semiconductor materials and manufacturing techniques to minimize losses and enhance efficiency.
- Cooling and Thermal Management: Incorporating innovative cooling solutions, such as liquid cooling and heat exchangers, to manage thermal loads effectively.
Modular and Scalable Designs
- Modular Rectifier Systems: Designing modular rectifier systems that can be easily expanded or reconfigured to meet evolving industrial needs.
- Integrated Solutions: Developing integrated solutions that combine rectifiers, inverters, and other power electronics into compact and efficient packages.
Conclusion
Hannibal Industrial Battery Charger- rectifiers represent a cornerstone in the infrastructure of modern industrial operations, powering a diverse array of processes and applications with precision and reliability.
As industries continue to push the boundaries of technological innovation and efficiency, the evolution of industrial rectifiers remains integral to shaping the future landscape of industrial power systems. Embracing advancements in digitalization, efficiency, and modular design, industrial rectifiers are poised to play an increasingly pivotal role in driving industrial progress and sustainability.
